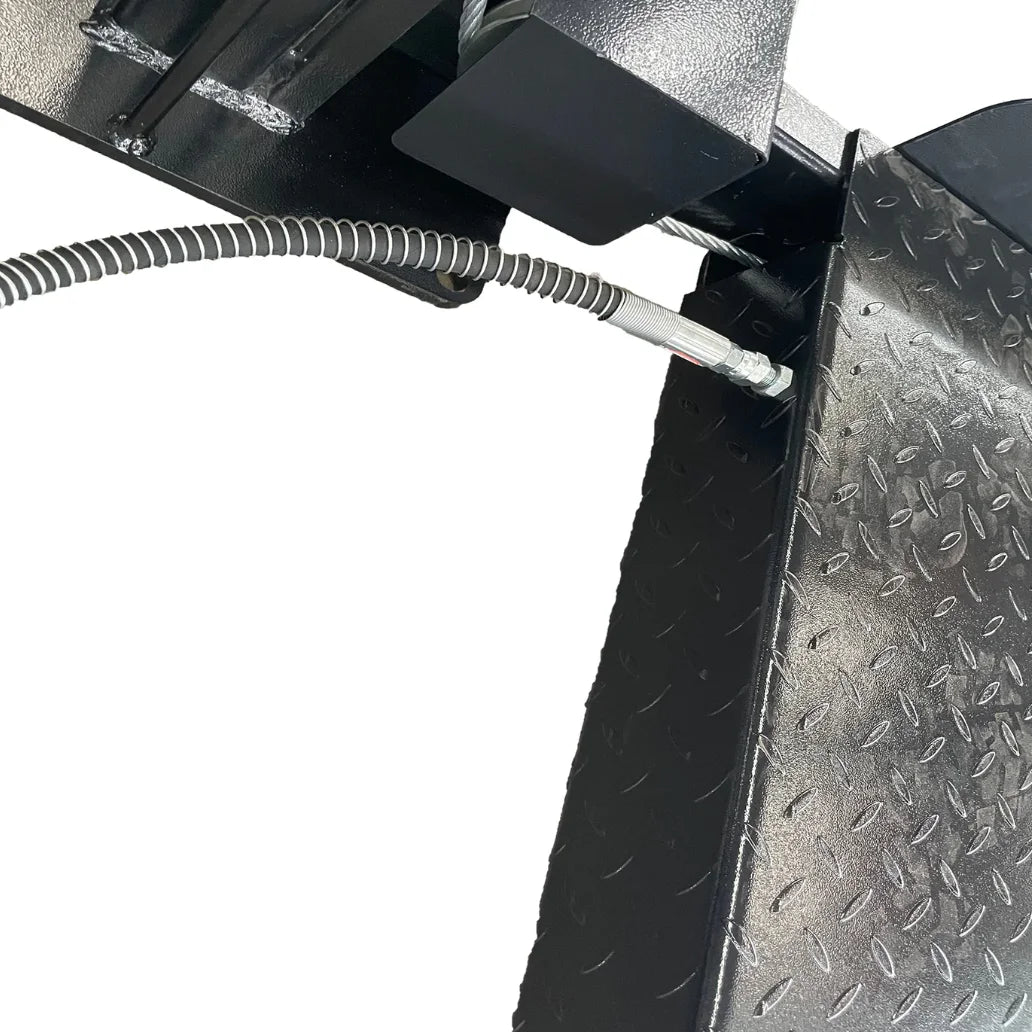

APlusLift 8000LB 4-Post Portable Parking Storage Service Car Lift - HW-8S or HW-8SXLT

2 YEAR (24 MONTH) WARRATY

DRIVE THROUGH WIDTH 99″; LIFTING HEIGHT: 82″; OVERALL DIMENSIONS 190″L X 112″W X 94″H

FREE CASTER KIT, JACK TRAY, DRIP TRAYS, REMOVABLE APPROACH RAMPS, AND POWE CORD

CE CERTIFIED LIFT STRUCTURE AND HYDRAULIC SYSTEM – TESTED 115% DYNAMIC LOAD CAPACITY AND 150% STATIC LOAD CAPACITY

SAFER OPERATION WITH A REVOLUTIONARY HIGH EFFICIENT 110V 1.5HP HYDRAULIC POWER UNIT

POWDER COATED FINISH WITH SUPERIOR CORROSION RESISTANCE

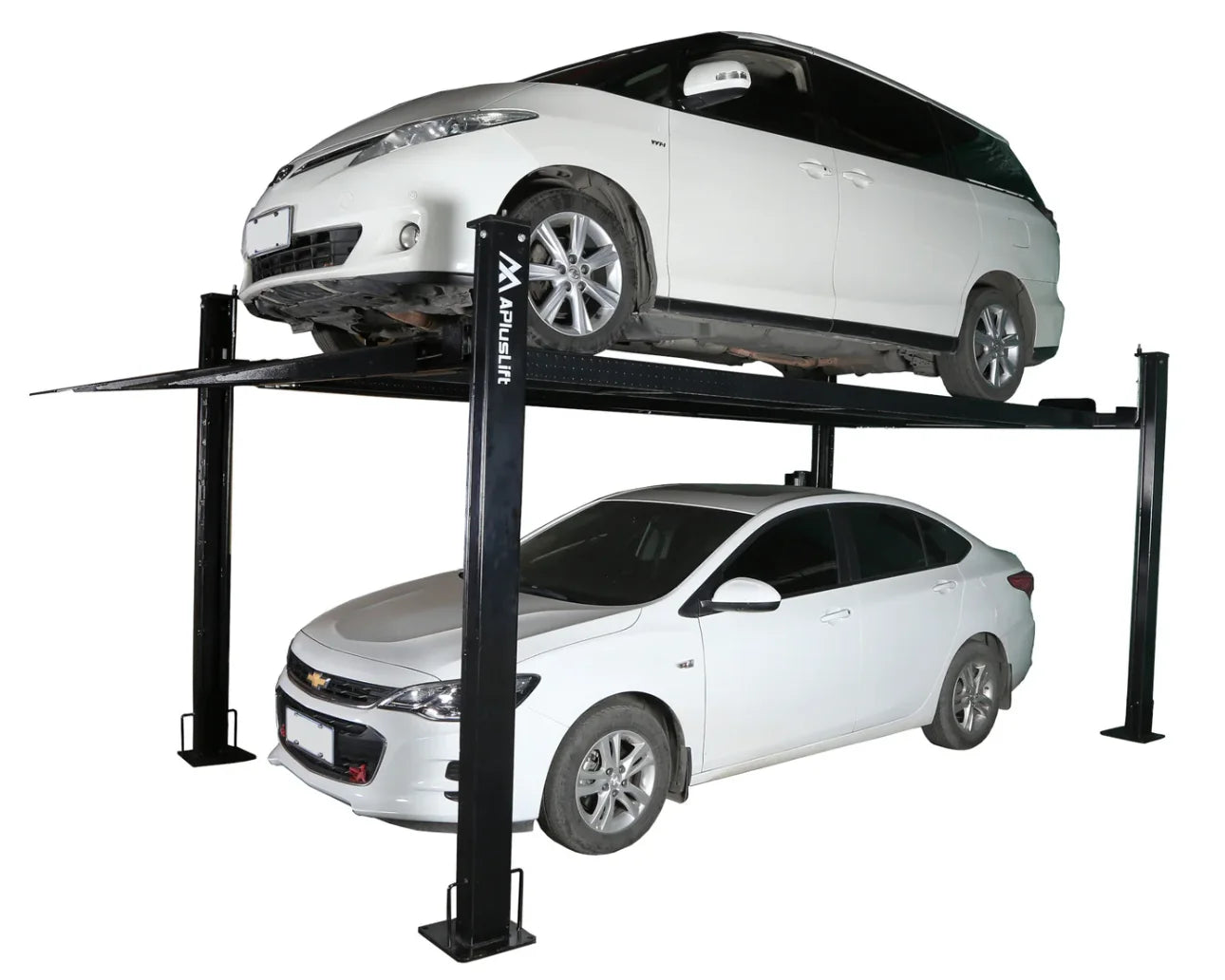

APLUSLIFT HW-8SXLT 4-POST CAR AUTO LIFT TRUCK HOIST IS A PORTABLE PARKING STORAGE LIFT WITH 8,000 LB CAPACITY. THE DESIGN OF THE CAR LIFT MODEL IS TIME TESTED FOR 30 YEARS. IT IS AN EXTRA LONG, EXTRA WIDE, AND EXTRA TALL CAR LIFT MODEL COMPARED TO THE HW-8S MODEL. IT IS BUILT WITH QUALITY MATERIALS AND GOOD WORKMANSHIP AND IS POWDER COATED FOR SUPERIOR CORROSION RESISTANCE. THE CAR LIFT USES A REVOLUTIONARY HIGH EFFICIENT 110V 1.5HP HYDRAULIC POWER UNIT TO MAKE CAR LIFT OPERATION MUCH SAFER. THE AUTO HOIST IS BEST FOR PARKING/STORAGE/SERVICE USE BY HOMEOWNERS OR RESTORATION SHOPS.

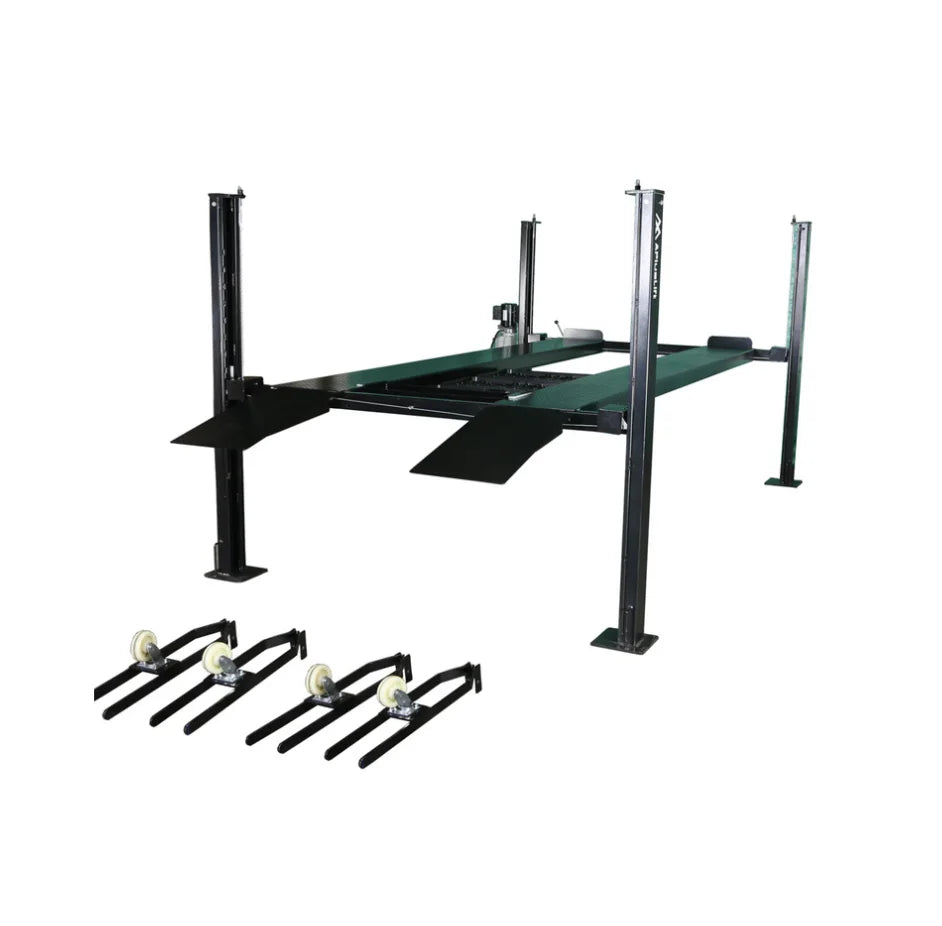

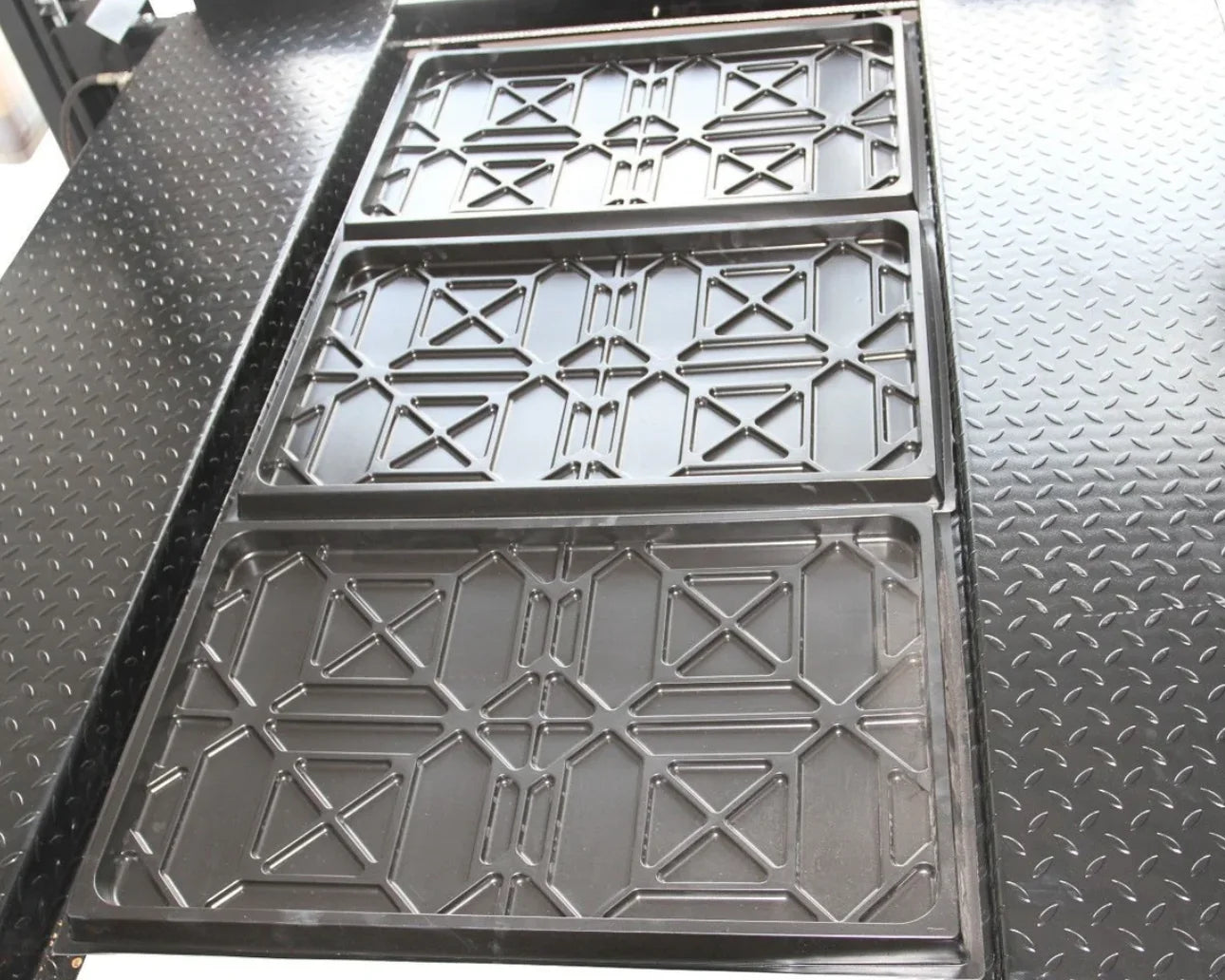

APLUSLIFT HW-8SXLT 4-POST CAR AUTO LIFT TRUCK HOIST PACKAGE INCLUDES A CASTER KIT WITH POLYURETHANE WHEELS, A JACK TRAY, THREE DRIP TRAYS, TWO REMOVABLE APPROACH RAMPS AND A POWER CORD. THE CASTER KIT ALLOWS CUSTOMERS TO MOVE THE LIFT AROUND THE GARAGE EASILY AND CAN BE INSTALLED OR REMOVED IN MINUTES. THE JACK TRAY ALLOWS CUSTOMERS TO USE A JACK TO LIFT ONE END OF THE VEHICLE. THE DRIP TRAYS PREVENT FLUID FROM THE TOP VEHICLE FROM DRIPPING ONTO THE BOTTOM VEHICLE.

SPECIFICATIONS AND FEATURES

Installation Manual

2 Years (24 Months) Warranty

Lifting Capacity: 8,000LB

Usage: Parking/Storage/Service

Powder Coated Finish with Superior Corrosion Resistance

Caster Kit, Jack Tray, 3 Drip Trays, And 2 Removable Approach Ramps Included

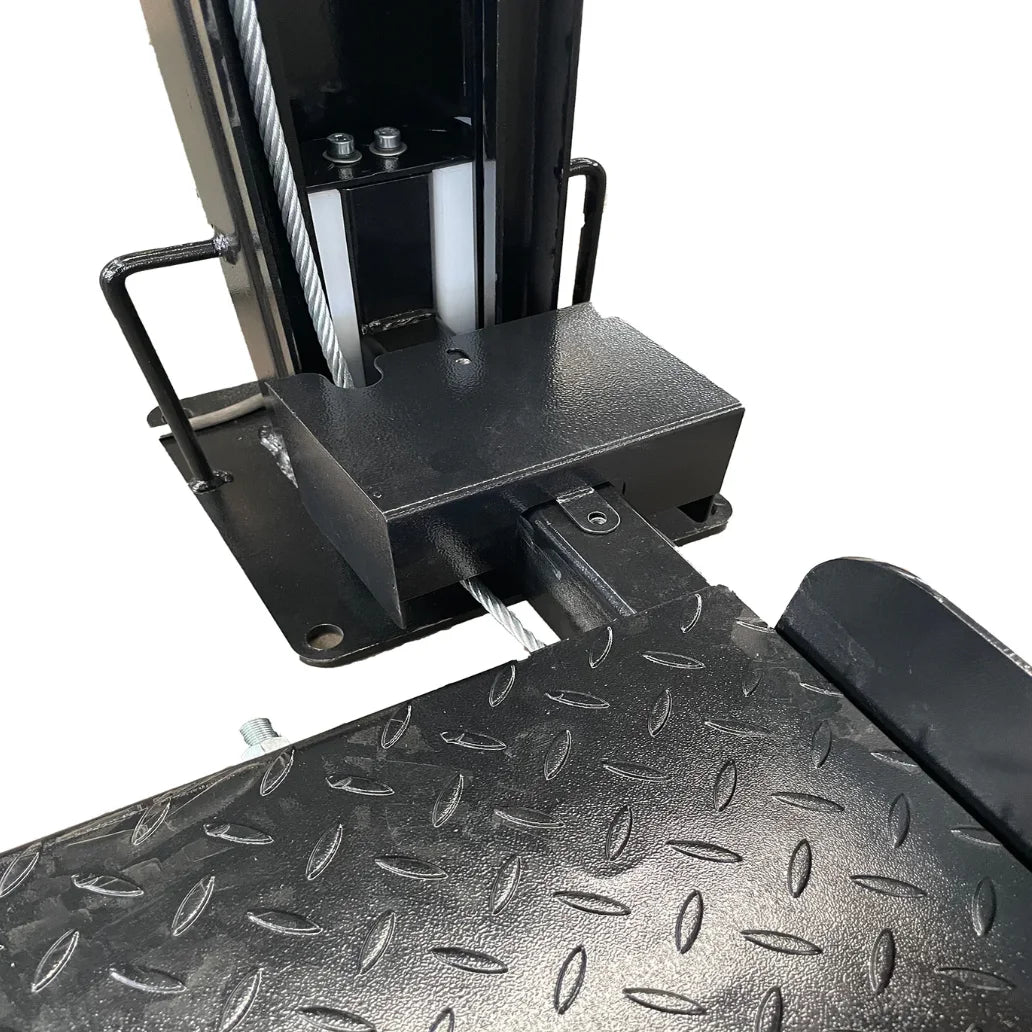

Heavy duty 3/8″ diameter cables that reduce high stress on synchronization process and increase cable life

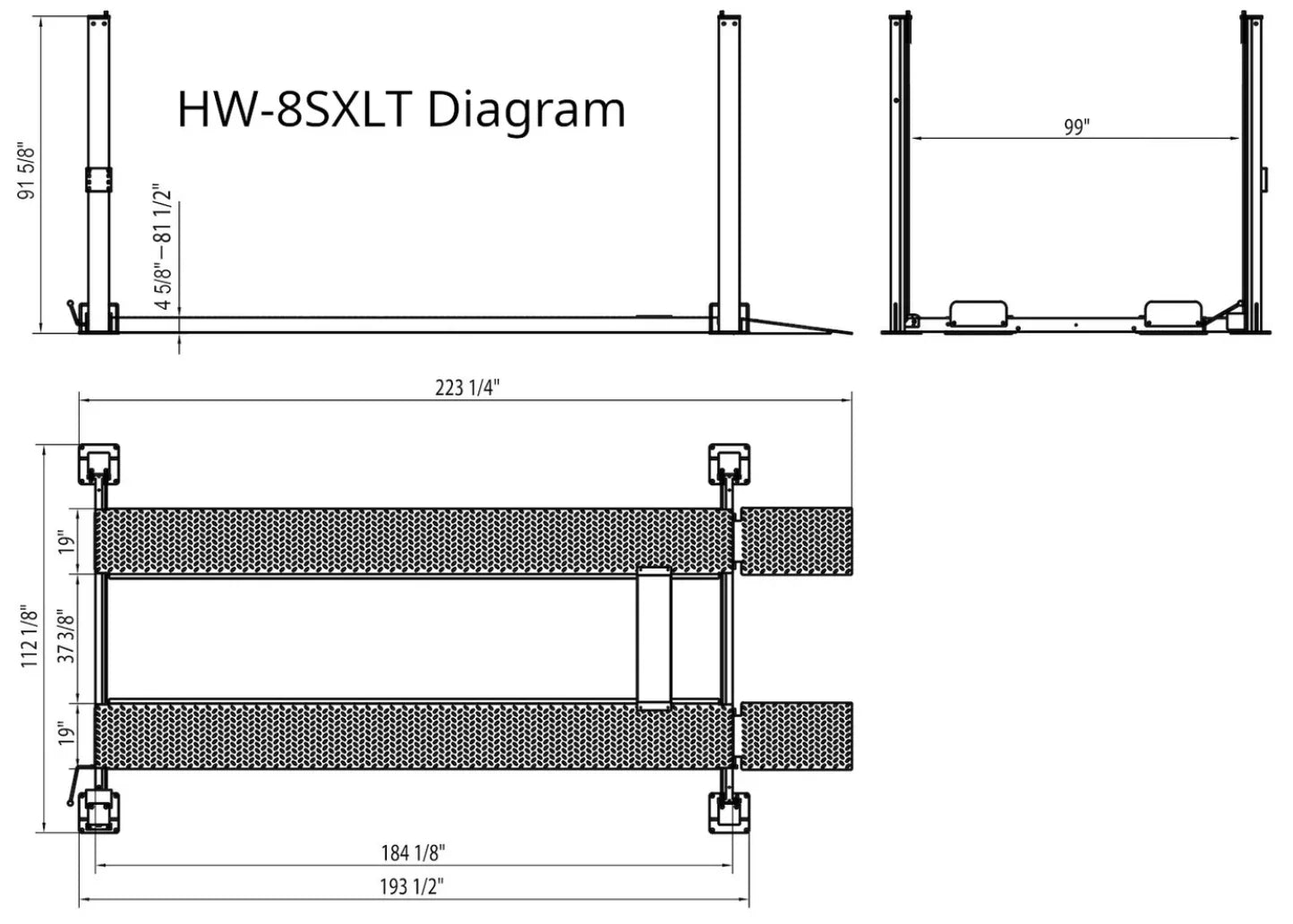

Overall Length: 190″

Overall Width: 112″

Overall Height: 94″

Lifting Height: 82″

Clearance Under Runway: 79″

Drive Through Width: 99″

Runways Size: 180″L x 18 1/2″W

Distance between Runways: 38″ Inside-Inside, 75″ Outside-Outside

Runway Gauge Steel: 6

Column Cross Section: 6″L x 4″W

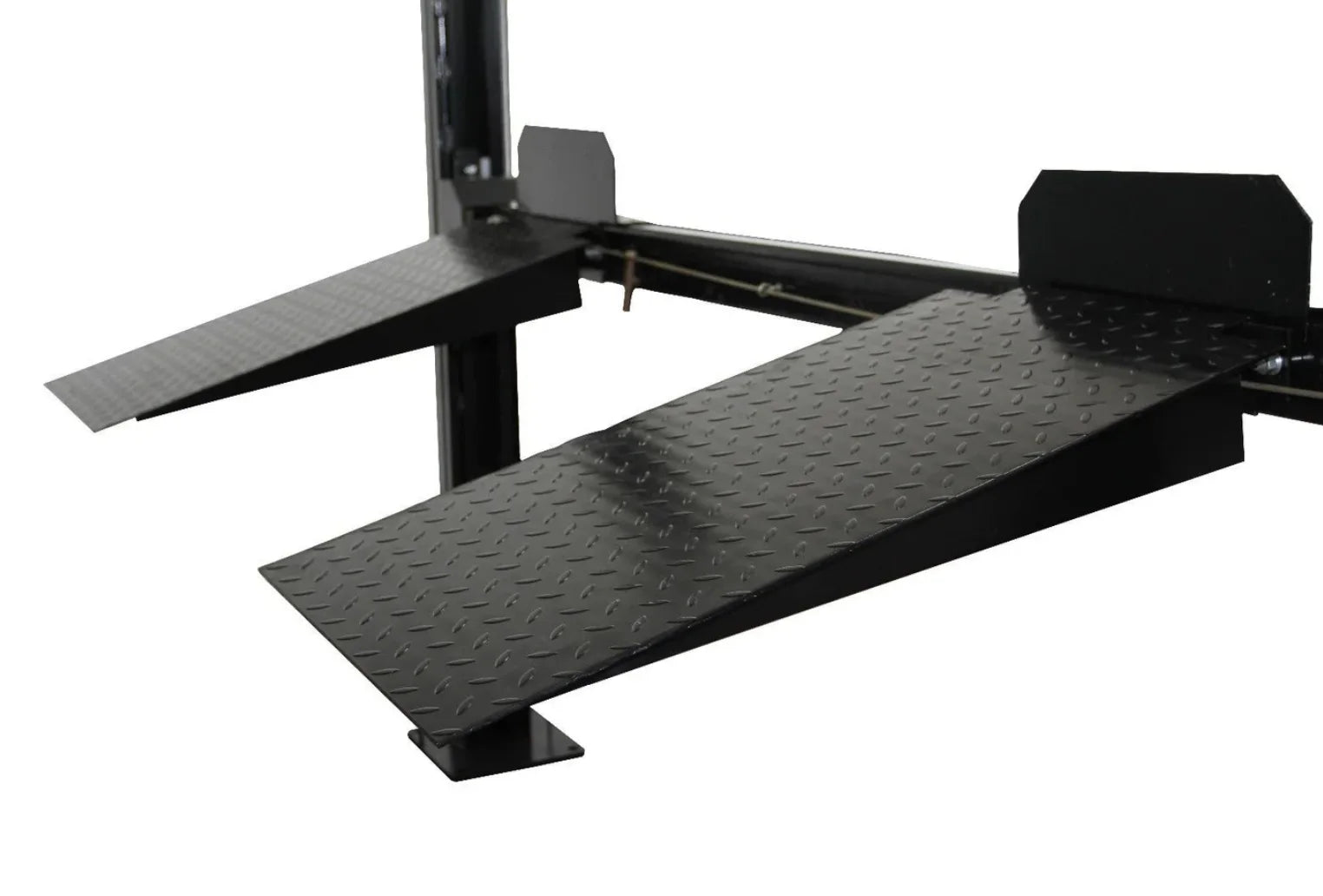

Removable Approach Ramps Size: 32″L x 18 1/2″W

Lock Positions: 10

Lifting Time: 40 seconds

Motor: 110V Single Phase 1.5HP 10A (recommend a 30A breaker)

Powercord: 10ft

Hydraulic Oil: 3-5 gallons AW32/AW46 (Not Included in the Package)

Concrete Thickness: 4″

Shipping Weight: 1,850LB

Shipping package size: 186″L x 22″W x 30″H
