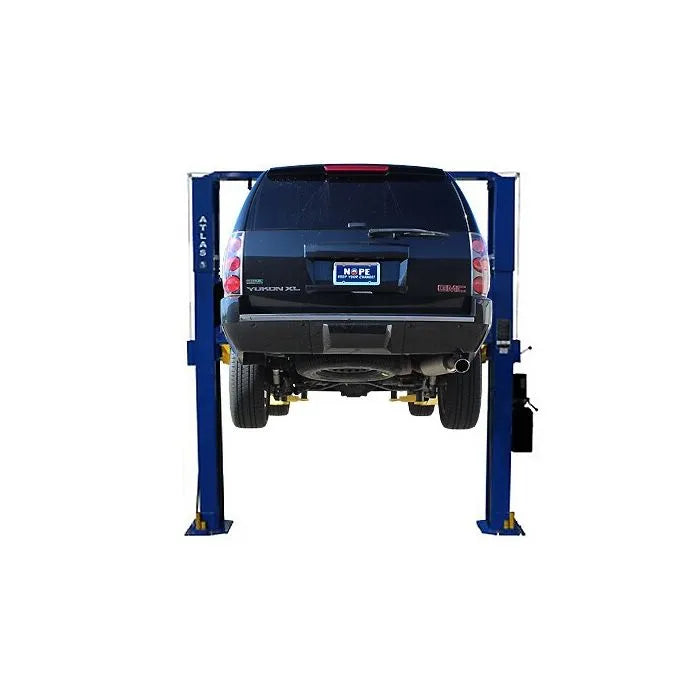

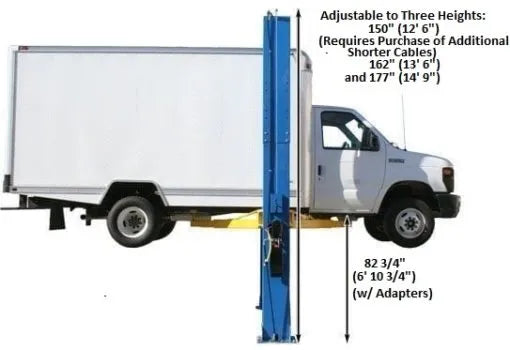

Atlas PV10PX Adjustable Overhead Two Post Lift

Atlas PV-10PX Commercial Grade Adjustable Height
Overhead Peak Two Post Lift 10,000 lbs. Capacity

PV = Professional Value
The Atlas PV series represents the absolute best value for the customer who demands a heavy duty professional grade two post lift at the lowest possible price. Atlas has been manufacturing the PV series two post above ground lifts for over a decade. Thousands sold! Descriptions such as "bullet-proof", built like a brick outhouse, tougher than nails, and other such euphemistic phrases are used every day to describe any of the Atlas PV series models. GET SERIOUS... GET ATLAS

The commercial grade Atlas PV-10PX two post lift includes some modifications and improvements that make it one of the most popular above ground lifts in the world.

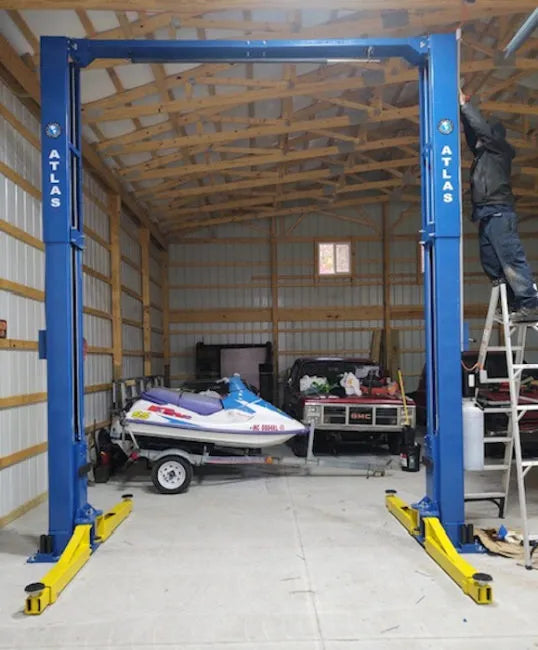

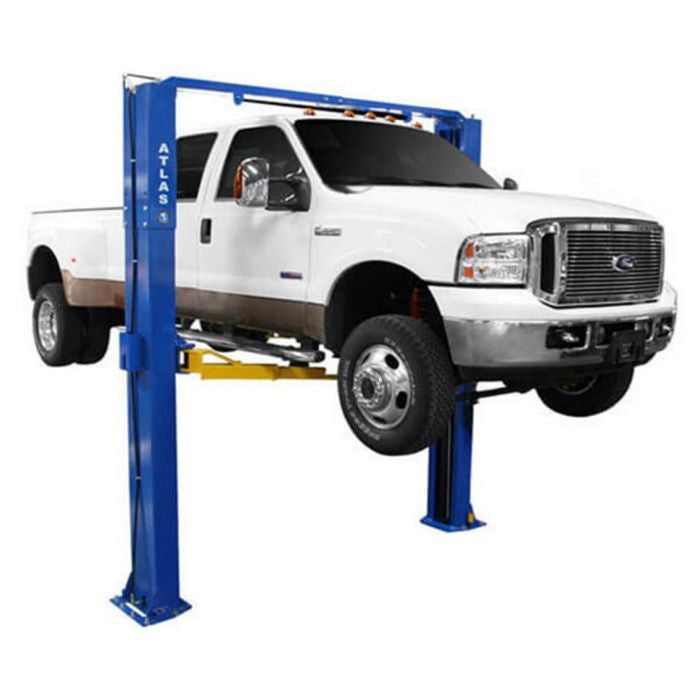

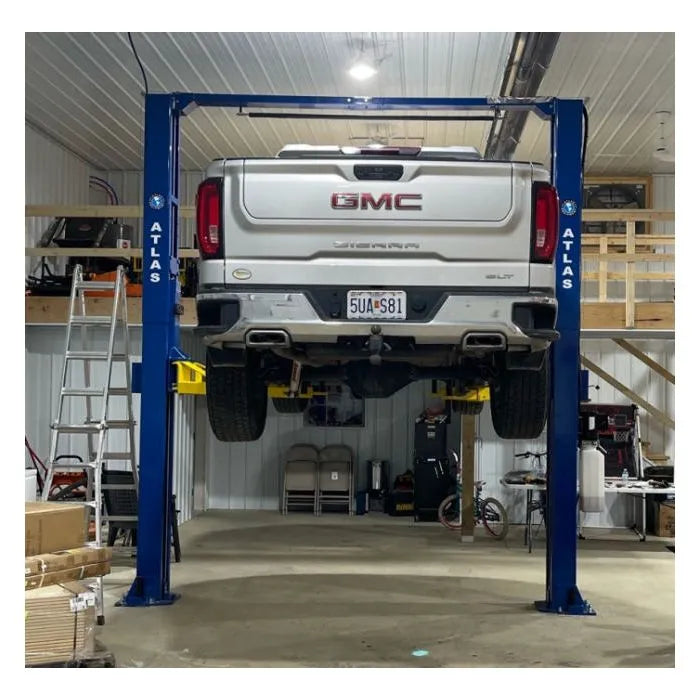

The Atlas PV-10PX is the perfect choice for use in either a large commercial service department or for the "pole barn" owner who wants the "biggest and baddest" lift in the county. The Atlas PV-10PX is designed and engineered to safely lift (and work on) everything from a Smart Car to a one ton diesel dually.

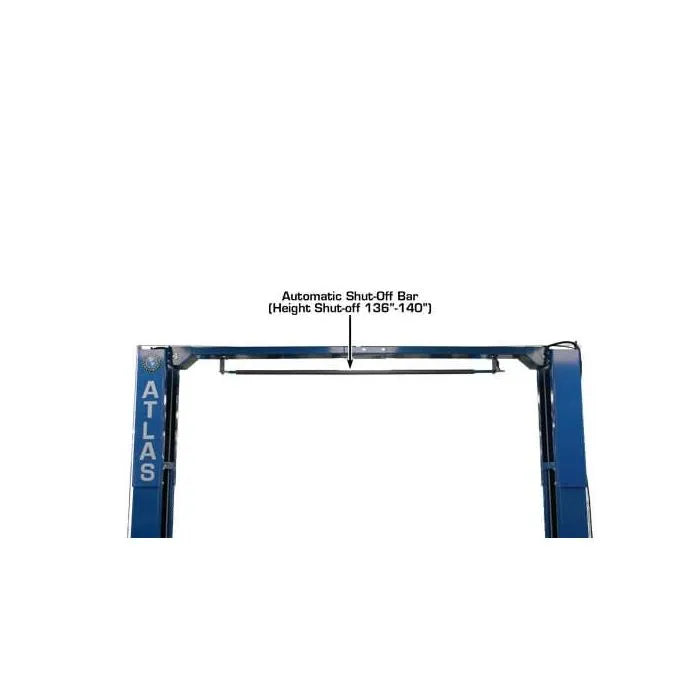

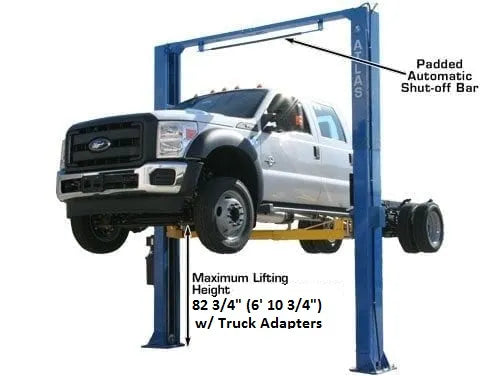

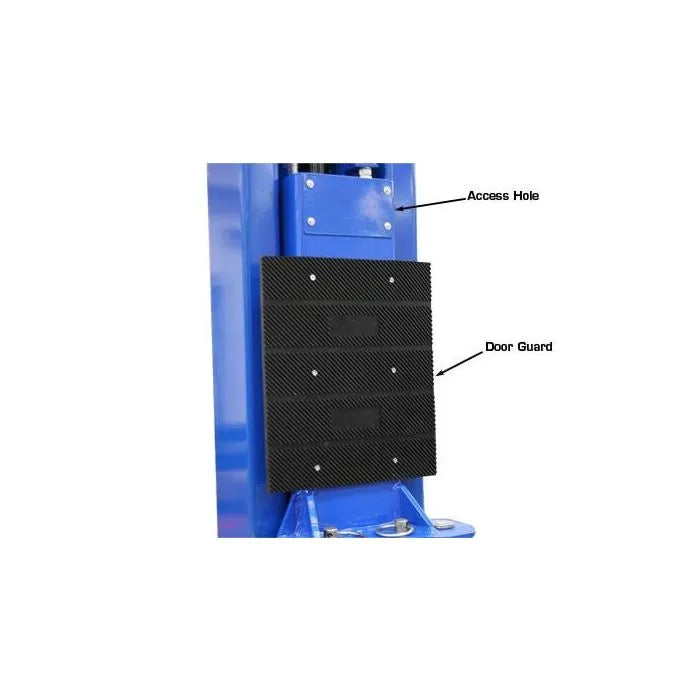

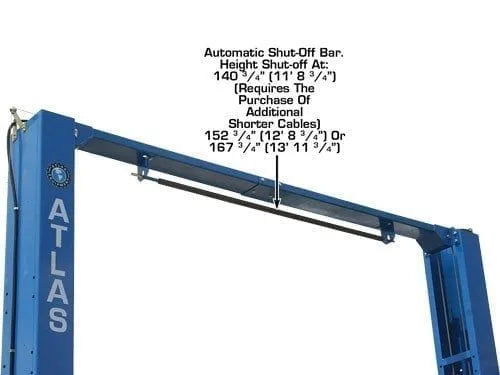

The Atlas PV-10PX incorporates a padded shut-off bar to protect the top of the vehicle from contacting the crossbar. The carriages are equipped with "padded" protective (thick rubber) covers to help prevent the vehicle's doors from damage if opened into the columns or carriages.

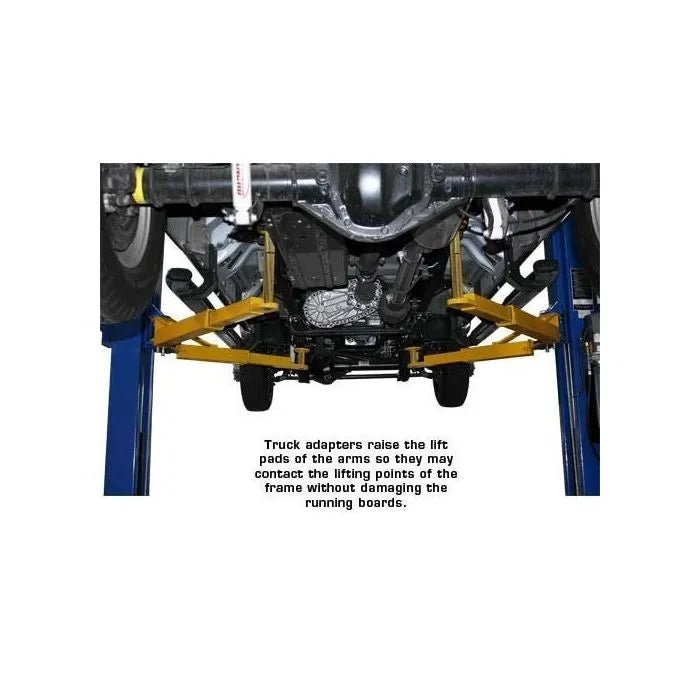

The truck adapter set has been augmented (12 pieces vs. 8 pieces) and the rubber lift pad has been reinforced to ensure a solid contact with the vehicle's lifting point.

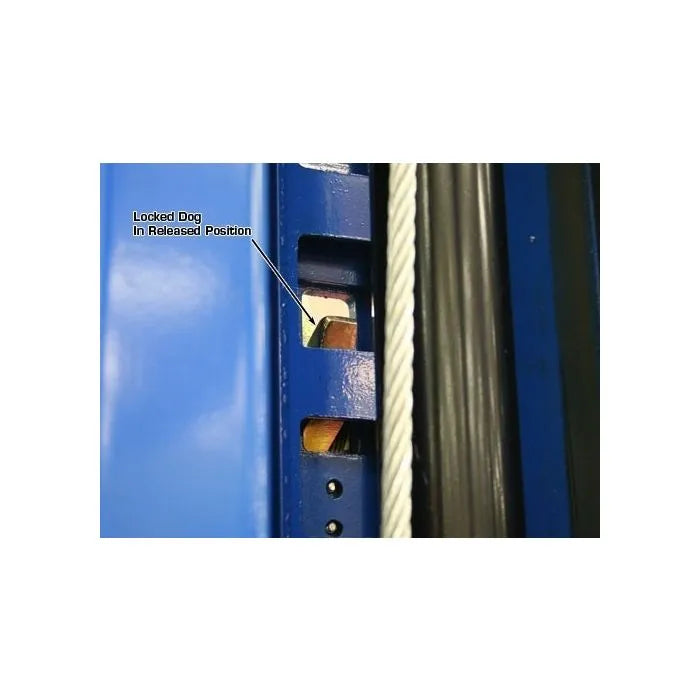

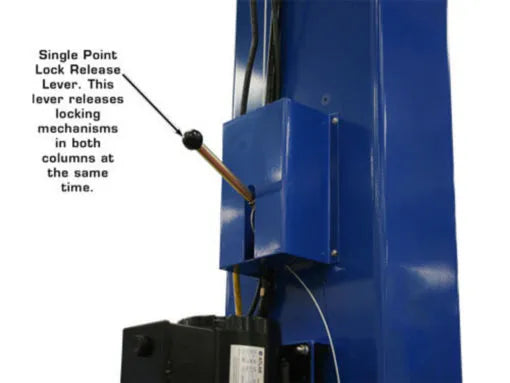

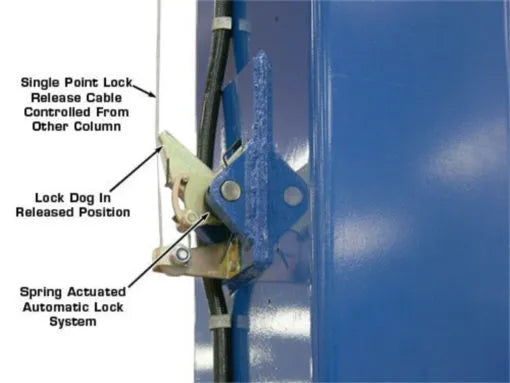

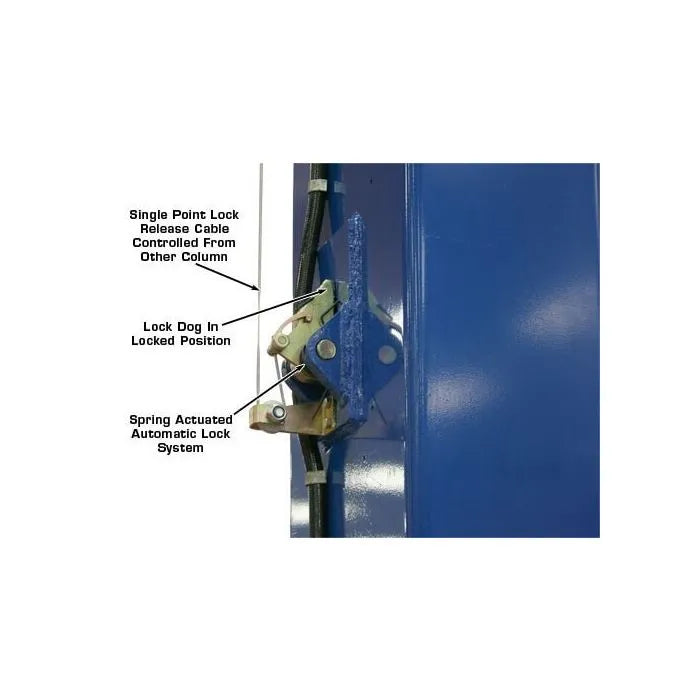

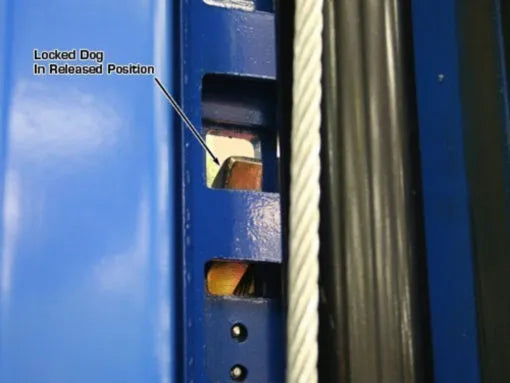

Single Point Lock Release

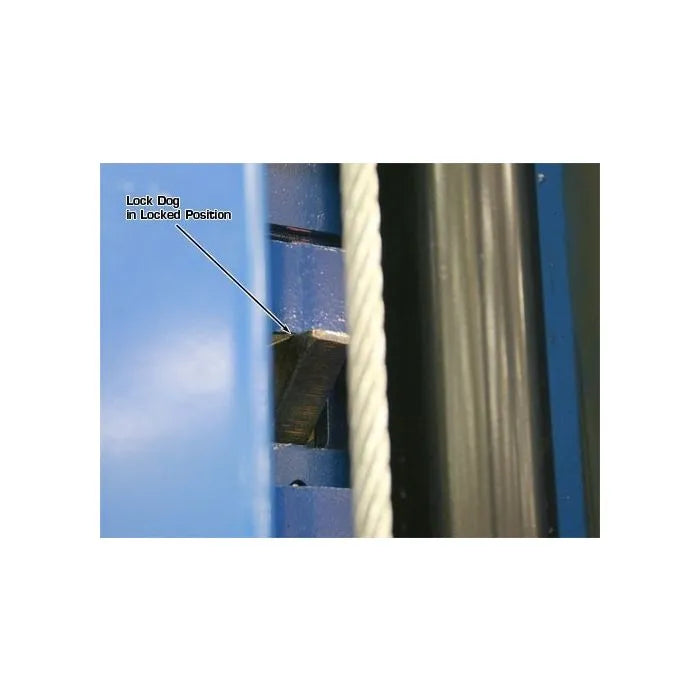

This Atlas Lift has a manual single point lock release that allows the operator to release all the safety locks at one time. The spring loaded lock handle and power unit dump valve must be activated at the same time. (two hand operation) If the lock handle is released and the dump valve handle is still being pressed, the lift will continue to descend and all locks will automatically re-engage at the next lower lock point.

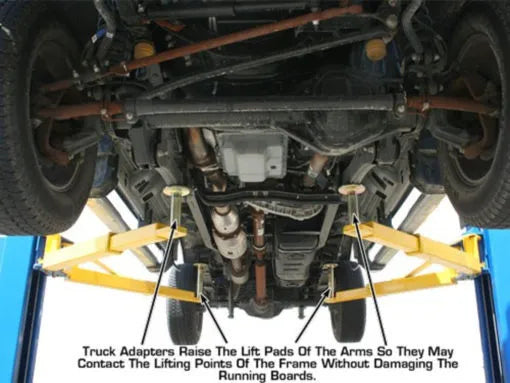

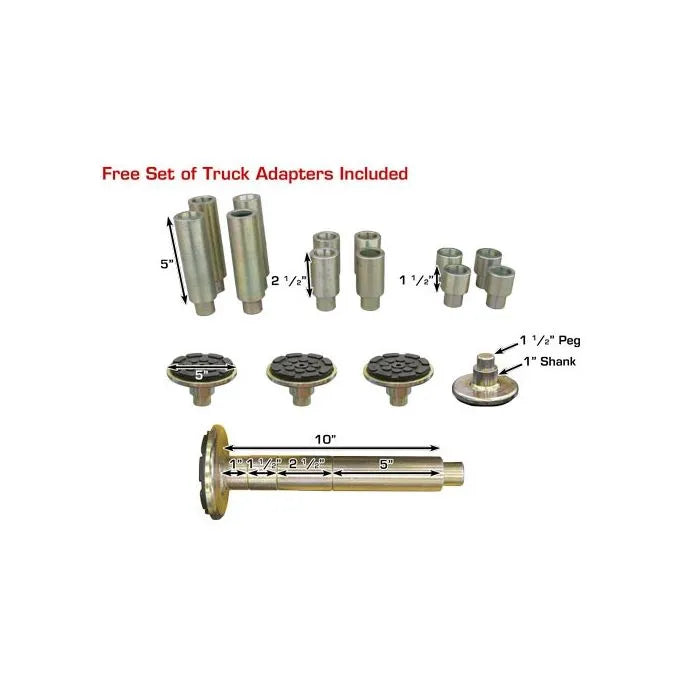

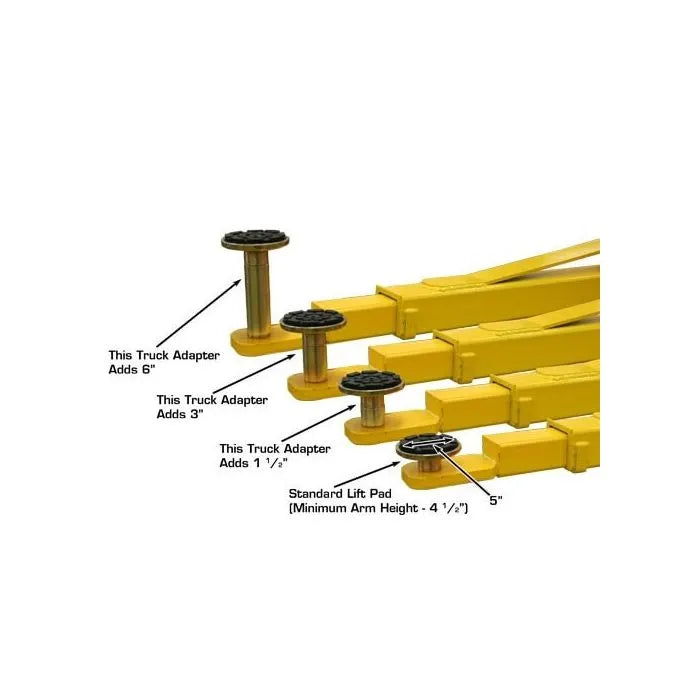

12 Piece Truck Adapter

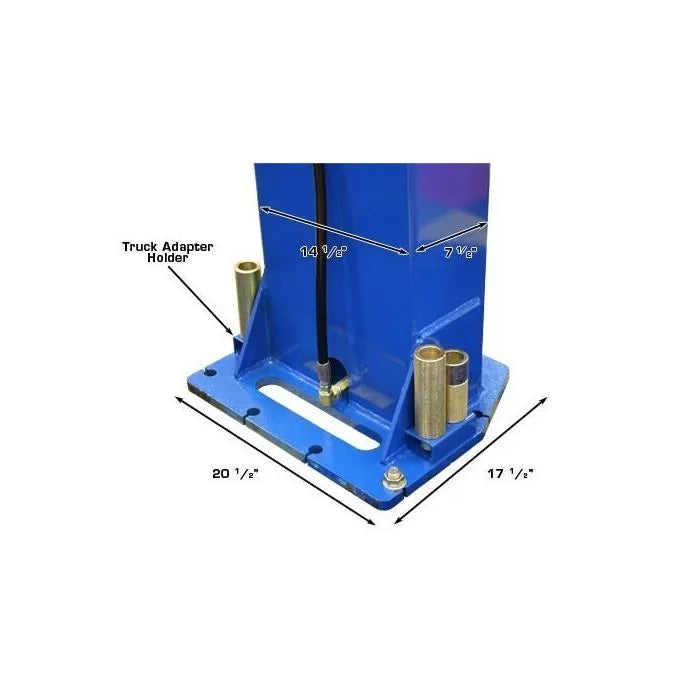

This lift comes standard with a twelve piece truck adapter set. The twelve piece truck adapter set offers many more lift height combinations than standard two piece truck adapter sets.

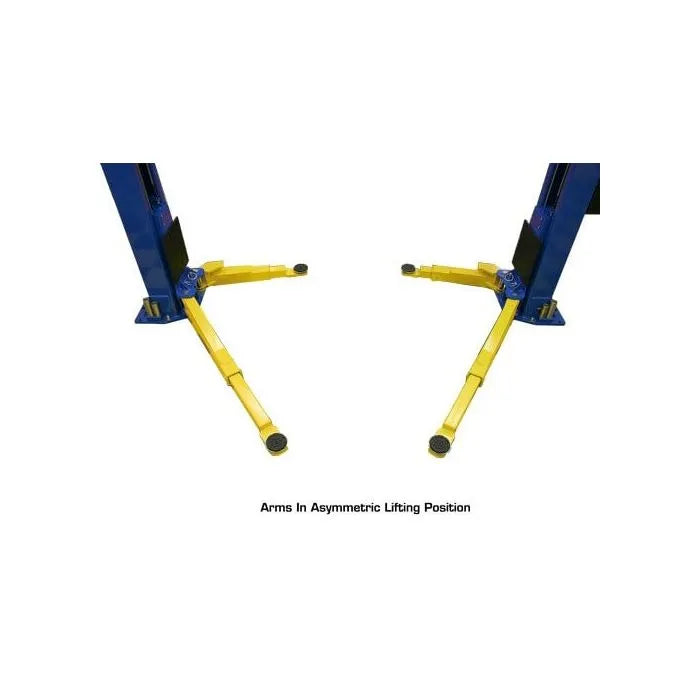

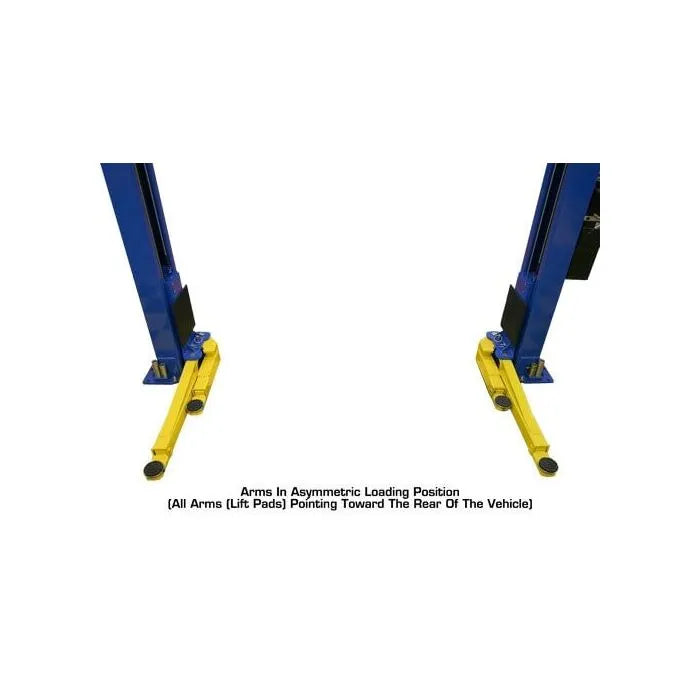

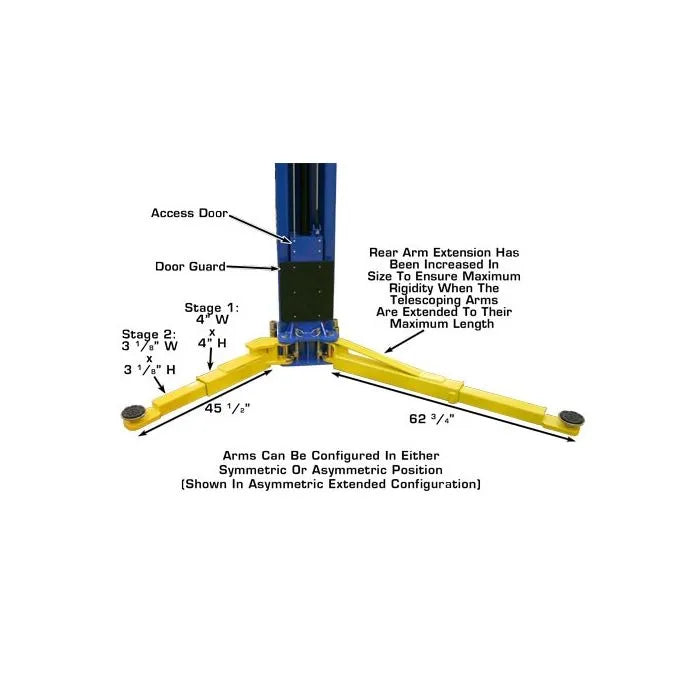

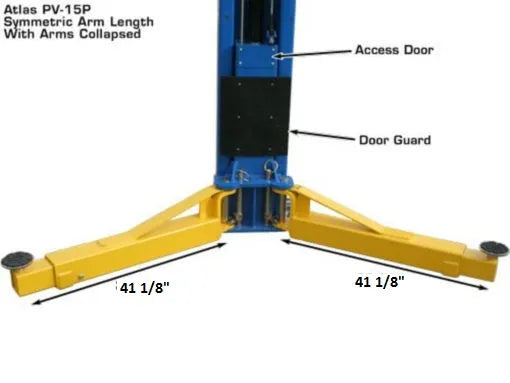

Asymmetric | Symmetric Design
The asymmetric/symmetric arm design offers an extremely low lift pad position on theEZ-metriclift arm configuration. This low pad height will allow the operator to position the lift arms under most small cars (with low pick up points) and heavier pick up trucks.

This lift has symmetrical columns and includes a set of EZ-metric arms. These arms can be configured into the symmetrical position to lift a full loaded pick up truck OR these arms can be configured to the asymmetric position to offer easier opening of the front door on some vehicles.

CE Tested and Approved

5 Year Structural & 2 Year Hydraulic Warranty
This Atlas product is warranted for five (5) years on structural components and one (2) year on electric or air / hydraulic power units and cylinders effective from date of invoice. Wear items carry a 90 day warranty.
