BendPak HDS-14LSXE + RBJ7000 + Airline Kit Package
BendPak HDS-14LSXE + RBJ7000 + Airline Kit Package
BendPak HDS-14LSXE + RBJ7000 + Airline Kit Package (SKU# 5175899)

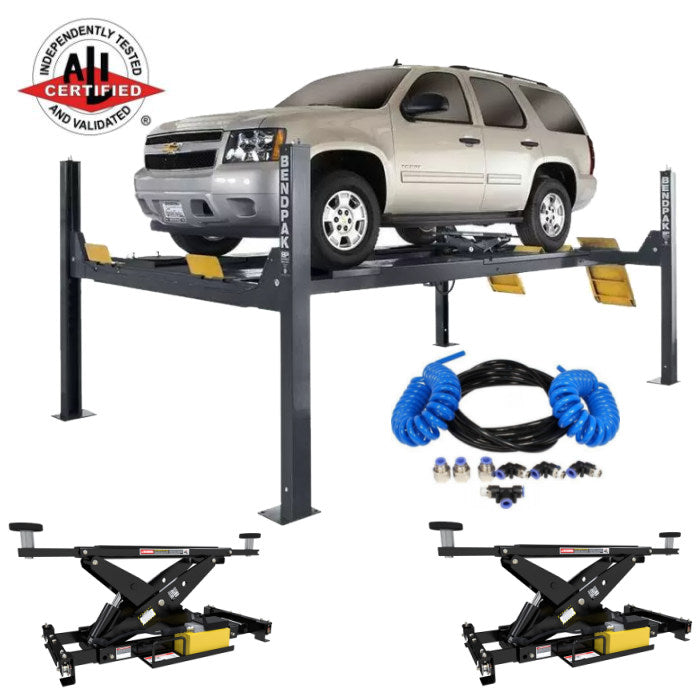

(1) HDS-14LSXE + (2) RBJ7000 + (1) Airline Kit

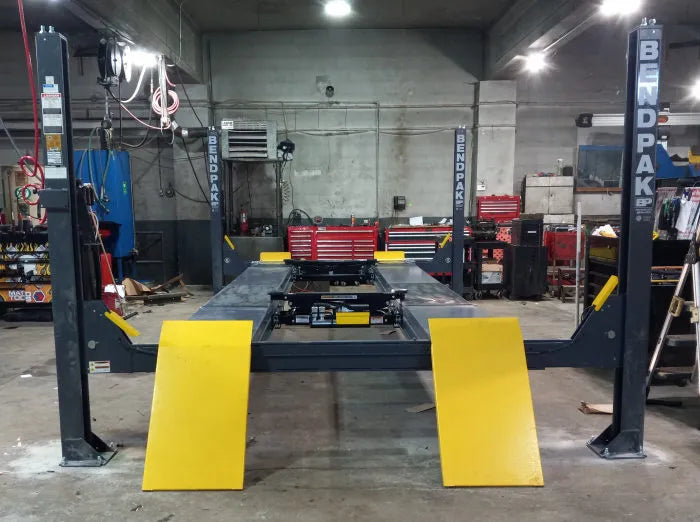

BendPak HDS-14LSXE Extended-Length Alignment Lift Offers 14,000 lbs. of Power
This model is essential for hundreds, if not thousands, of shops across the country. Busy bays are going to service a variety of vehicles, and depending where you work, you're likely to get some exceptionally big vehicles in need of alignment services. This model all but guarantees you'll be ready to handle anything. With a 14,000-lb. capacity, the HDS-14SLXE lifts virtually all residential vehicles, from sedans to heavy-duty pick-up trucks to municipal vehicles and farming equipment.

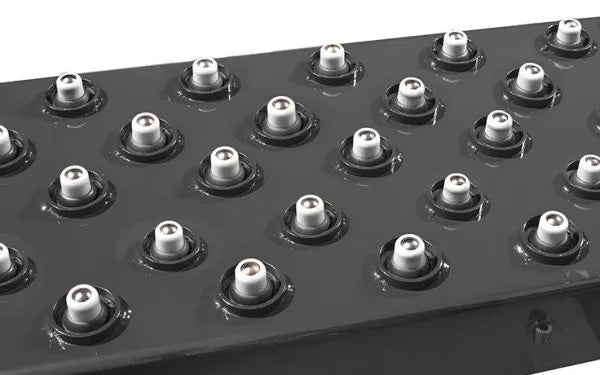

Slip plates
Turn plates in the front and multi-caster slip plates in the back allow for perfectly precise, free-floating alignments.

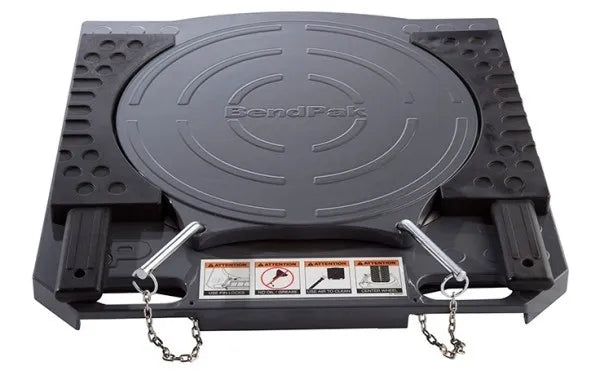

Deluxe Turnplates
Aluminum-alloy construction turn plates are easily positioned using BendPak's turn plate pockets. Larger and more robust than our previous slip-plate design, they're also lighter in construction and feature dual "popsicle gap stops" for your convenience. Angled steel lock pins conveniently hold the plate in place when you want to use your machine strictly as a maintenance or storage lift.
Dual-hub cable sheaves
To increase longevity, ensure low cost of ownership and keep your purchase low-maintenance over time, we use the biggest and best sheaves throughout the lift. Massive 10.5€� diameter cable sheaves are held within the runway cross tubes, outfitted with 2.25€� diameter sheave axles that are equally durable.
Heavy-duty aircraft cable
These cables are meant to be used continuously for years on end without issue. They're extremely resistant to rubbing and other abrasions (e.g., weather, chemicals, hydraulic oil). A 1/2€� diameter 6 x 25 aircraft-quality stainless-steel lifting cable runs through each column.
Adjustable height locking positions
No need to reach or bend for the turn plates. Every few inches, a convenient built-in safety lock will let the runways auto-engage into the post. All locks engage simultaneously as the runways evenly ascend the columns.
Built-in lubrication
Grease fittings make it easy to focus on the alignment of your wheels without worrying about the constant lubrication of the sheaves.
Flow restrictor
You'll probably never experience a hose rupture, but we have you covered just in case. BendPak's unique hydraulic flow divider provides a smooth descent, making your alignment lift structure safe to operate at all times.
Spring-loaded safety locks
As the alignment lift runways rise to your preferred service level, springs "snap" and hold the locks into place at each ladder position. The spring-loaded, multi-locking devices are adjustable. The design also compensates for slight slopes in your garage.
Push-button pneumatic lock release
A simple push-button pneumatic lock release simplifies lowering operations. Stainless steel and aluminum pneumatic cylinders provide years of maintenance-free service.
Secondary lock system
BendPak doesn't cut corners on safety, even going above and beyond required safety standards. We offer a slack-cable lock system as a backup safety mechanism that's ready at all times to shut off the alignment lift in the development of dangerous cable slack.
Integrated design
The cables, sheaves, airlines and hydraulic cylinder run within the lift structure. This congregation of high safety and improved aesthetics gives our lifts a highly distinguished look that also increases user safety and comfort.
Electric-hydraulic power system
The zero-maintenance power system features ergonomically located controls for easy operator access during repetitive daily use.
Longer approach ramps
Longer ramps make it easier to load low ground-clearance vehicles onto the car lift structure. Alignments on these vehicle types are no hassle, and of course, larger trucks and SUVs can glide on just as easily as low ground-clearance sports cars.
Flexible protective conduit
An extra-tough yet flexible conduit protects all airlines and hydraulic hoses from daily wear. You'll handle your alignment lift with greater confidence knowing the cables won't deliver sudden shocks, ruptures or fluid leaks.

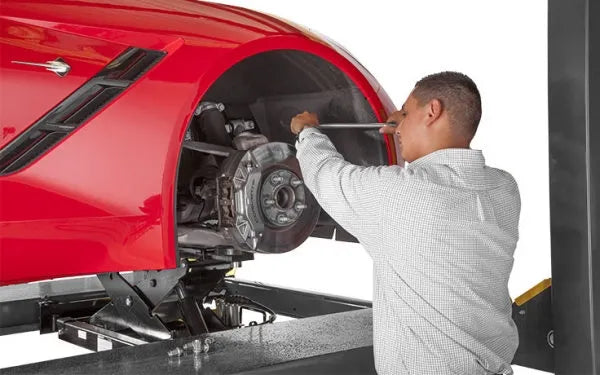

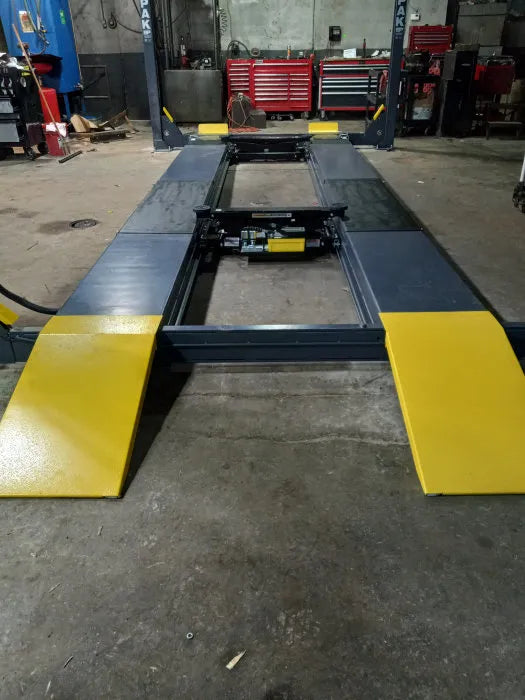

Rolling bridge jacks
Convert your four-post into a fully functional wheel service lift. Optional rolling jacks make a great addition and increase service capacity. Bridge jacks raise vehicles by the frame, so wheel and brake service can be performed without moving the vehicle to a different car lift. Telescoping arms and frame contact pads extend over runways and target the vehicle's lifting points. Runways are fully adjustable for different tread widths. Three locking positions offer additional operator control.

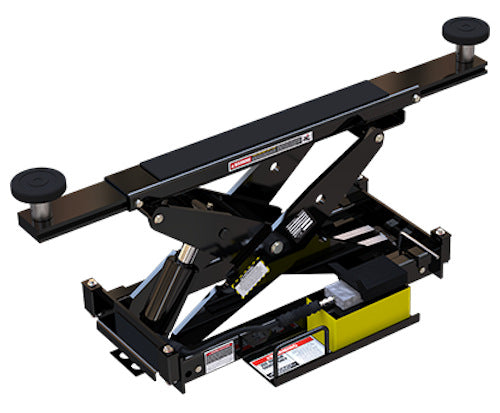

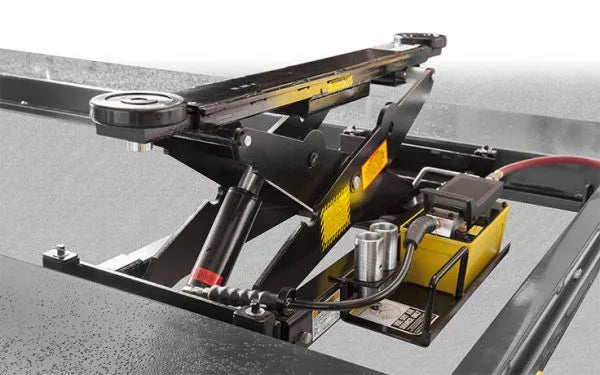

RBJ7000 Rolling Bridge Jack | Lift 7,000 lbs. for Full Wheel Service Capability
The HD-14 car lift is one of our most popular units for lifting medium-duty vehicles, as well as low-stance sports cars. Its extended approach ramps make it easy to safely engage your vehicle's wheels, but what do you do when it's time for a tire swap? Unless you want to expand your capabilities with a two-post lift, a simple pair of RBJ7000 rolling bridge jacks is necessary to lift the vehicle. (Each jack lifts half the vehicle frame.)

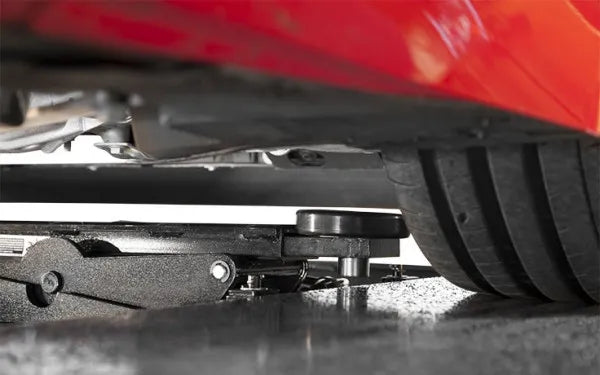

Rubber contact pads
BendPak rubber contact pads are included with every rolling bridge jack we sell. The RBJ7000 pads engage the lift points of large vehicle chassis with ease. We recommend purchasing the optional frame cradle pads for larger trucks and SUVs, as well.
Stackable adapters
Because different suspension rigs and vehicle bodies sit at different heights above the ground, the RBJ7000 rubber contact pads come with stackable adapters. This lets you reach the lift points without sacrificing how much rise you get from the jack. The adapters work on every vehicle type; all you need to know is whether the RBJ7000 is the right jack for what you want to lift.

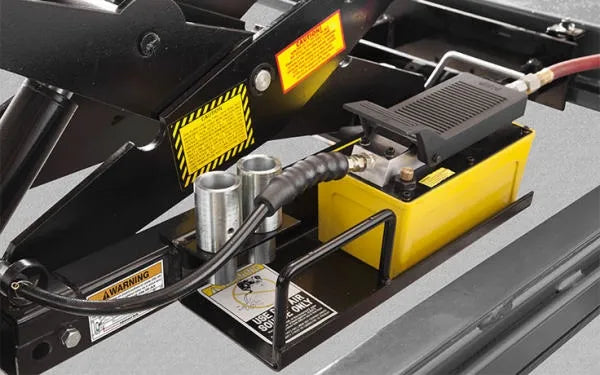

High-pressure hydraulic power unit
A single, air-hydraulic pump is fitted to the side of the RBJ7000 rolling bridge jack. Your car lift has its own electric-hydraulic system that runs independent of your jack's. After connecting the air line to the jack (needs 125 PSI and 10-20 CFM), an easy-to-use foot pedal activates the jack.
Three lock levels
For your convenience, BendPak rolling bridge jacks can be lifted to three different positions. They lock automatically as the jack rises and release together as the jack descends. Your car lift operations are separate from those of the bridge jack.

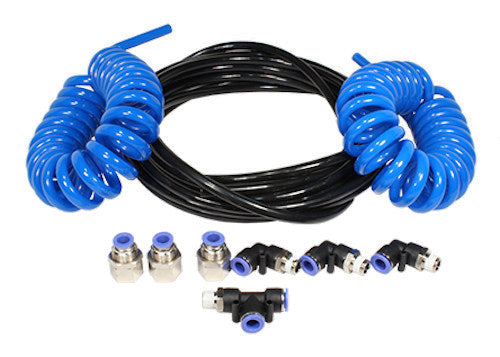

Provide Air to Two Bridge Jacks at Once | Airline Kit 5174009
Rolling bridge jacks are great for extending the functionality of your BendPak four-post lift, and they're about to get a whole lot better. Install this helpful kit and elegantly hide the airlines beneath your lift's own runways. This Airline Kit comes with all the accessories you need to connect both of your rolling bridge jacks to your air compressor with ease.
The AK-14 Airline Kit comes with adapter fittings that allow you to connect airlines to your rolling bridge jack air/hydraulic pumps. With the fittings installed, you'll only need one hose to provide air for both of your rolling bridge jacks. Not only does this simplify the process, but the fittings in the Airline Kit also allow you to hide the airline up and away, mounting the airlines securely to the bottom of your lift's runways.
Messy airlines not only look bad, but they are a major tripping hazard. The Airline Kit gives you peace of mind while you work, and comes with everything you need to give your four-post lift, and your shop, a clean and efficient setup!
